Typical Remote Display Dimensions

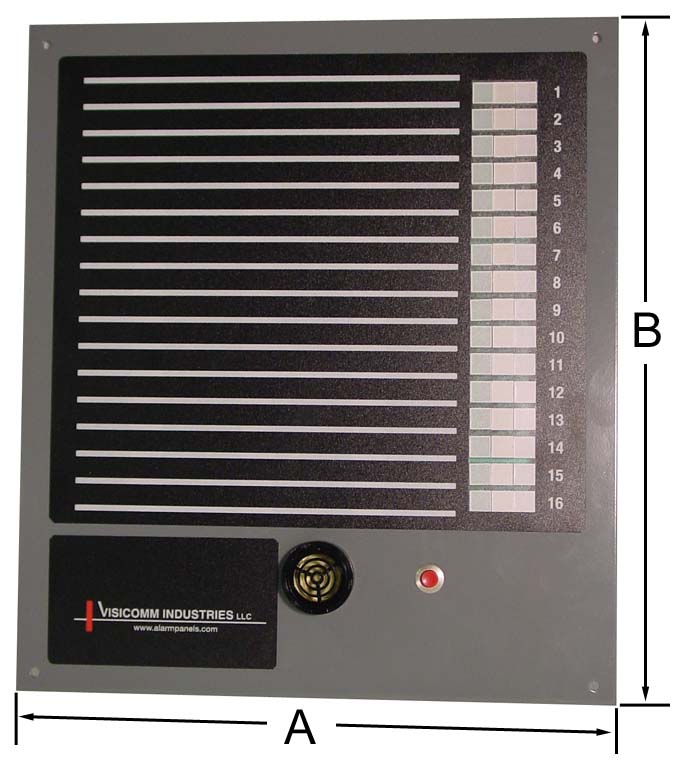

Remote Display (NX-16P Shown)
Remote Display   Backplate
CASE MODEL   A B

NX-8P   11" 12.5"
NX-12P   11" 12.5"
NX-16P   11" 12.5"
NX-24P   11" 20.5"
NX-32P   11" 20.5"
NX-48P   11" 28.5"

CASE MODEL   A B

NX-8P   11.375" 11.375"
NX-12P   11.375" 11.375"
NX-16P   11.375" 11.375"
NX-24P   11.375" 17.6875"
NX-32P   11.375" 17.6875"
NX-48P   11.375" 25.6875"

* C dimension varies, but is always less than 3.875"
